제품 상세 정보:
|
| 모델들: | 주문 제작됩니다 | 능력: | 20-1800 kg/h |
|---|---|---|---|
| 입력 크기: | <15 mm=""> | 훌륭함: | 60-2500 메시 |
| 쇄석기 모터: | 11-75 kw | 기능: | 갈기 |
| 다른 이름: | 마른 생강 연삭반 | 적용 가능한 물자: | 마른 생강 |
| 강조하다: | 생강분 분쇄기 기계,완전 자동 파우더 분쇄기 machine,11kw 파우더 분쇄기 기계 |
||
20-1800kg Per Hour Yield 60-2500 Mesh Powdr Fineness Powder Crusher Machine
Product Introduction Of Ginger Powder Making Machine:

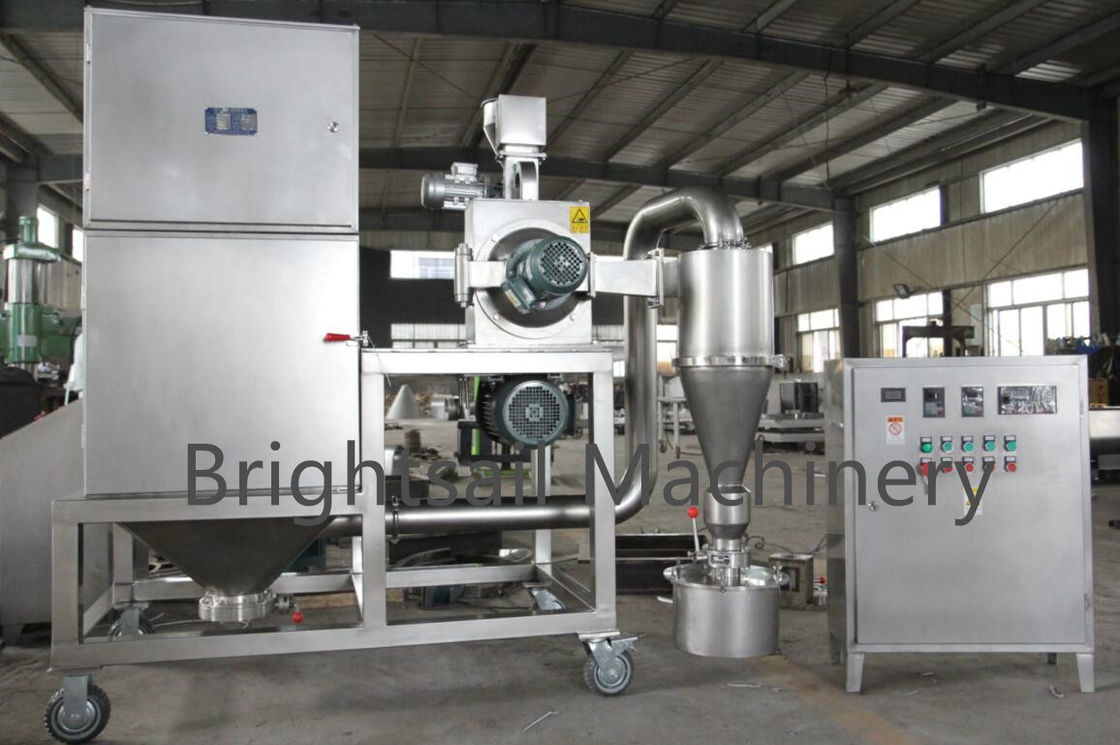

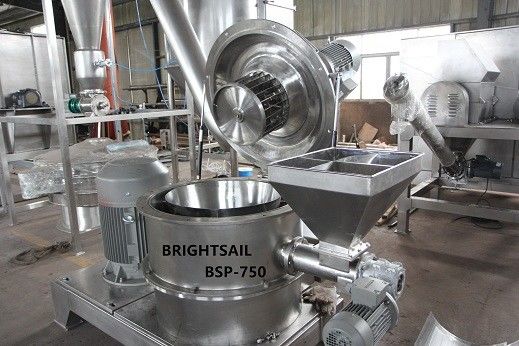

BSP ginger powder making machine is an advanced pulverizer, which has the advantages of stable technical performance, low noise, low consumption, high efficiency, adjustable fineness, low temperature rise, etc. . It is very suitable for sugar, food powder, herbs, spices, etc. . The unit is composed of crusher part, powder collecting device, conveying pipe, electric control cabinet and so on. The crusher part is provided with air grading equipment, so that the product granularity can be adjusted arbitrarily and the excessive crushing can be prevented. The crushed powder is conveyed to the cyclone by negative pressure and discharged by the discharge valve.
Working method Of Ginger Powder Making Machine:

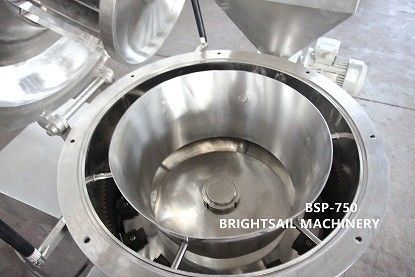

The raw materials are conveyed to the mill chamber by the screw feeder, and are sheared by the eddy current generated by the high-speed cutting machine and high-frequency vibration. Due to the negative pressure, the pulverized powder enters the common wheel. Through the rotation of the grading wheel and the centrifugal force of the air knife, the powder with a particle size larger than the grading particle size is sent back to the grinding chamber. The qualified powder will enter the pipeline and be discharged.
Main features Of Ginger Powder Making Machine:
1. Very fine powder manufacturing. In the food industry, materials can be ground to more than 300 Mesh (such as rice, Turmeric) ; in the chemical industry, materials can be ground to more than 1000 Mesh. (EG TALC)
2. When the crushing Chamber is working, the particle size of powder can be changed by frequency conversion and speed regulation without screen or screen Mesh.
3. There is no dust in the production process, dust can be collected in the dust collection box.
Our service Of Ginger Powder Making Machine:
All products purchased in our company are guaranteed for one year. If quality problems occur during the warranty period, our company will provide free warranty.
a. Before sending the machine, we will test and adjust, you can use it directly after you receive it.
b. Send operation videos and operation instructions to customers to help them use the machine better.
In addition, our company also provides lifetime technical support and accessories.
After-sales service is not limited by time, we will solve the problem for you in time. If you encounter problems when using our products, please reply in time
Technical data Of Ginger Powder Making Machine:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
You can click this link below to know more about this ginger grinding machine.
