제품 상세 정보:
|
| 보증: | 일년 | 최대 수용량: | 5000kg/h |
|---|---|---|---|
| 훌륭함: | 10-120 메시 | 재료: | SS304 |
| 적용 가능한 물자: | 소금, 당화합니다 | 우리의 서비스: | 프리세일즈 서비스와 에프터 서비스 |
| 다른 이름: | 설탕 분쇄기 | 장점: | 고전력 |
| 강조하다: | 12대 메쉬 당분말 machine,120mesh 당분말 machine,5000kg/h 당분말 기계 |
||
50 To 5000kg Per Hr Yield 12 To 120mesh Powder Fineness Sugar Powder Grinding Machine
Production Of Sugar Powder Grinding Machine:
The BSG sugar powder machine produced by our company is a kind of high efficiency sugar factory designed and developed by our company. The machine has good grinding effect on crystal materials such as sugar, salt and Baking Soda. Also suitable for grinding spices, herbs, grains and so on. There are two knives for you to choose from. One is the Hammer, the other is the disc. The refiner effect is slightly better than the hammer effect, that is, the refiner effect is better than the hammer effect. The disc type generates more heat than the hammer type. When the material is highly thermal sensitive, the preferred hammer.
Working Method Of Sugar Powder Grinding Machine:

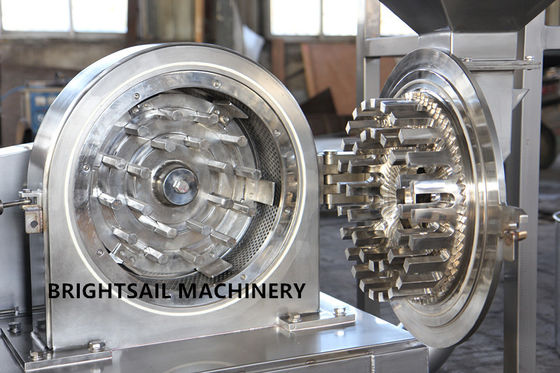

The material is crushed by the high-speed relative motion of the moving fixed disk and the rotating disk, the impact of the grooved disk, the friction and mutual impact of the material. The crushed materials can be directly discharged from the crushing chamber of the crusher, and the required particle size can be obtained by installing screens with different pore sizes.
Main Features Of Sugar Powder Grinding Machine:
(1) the whole machine is made of stainless steel, and the inner surface of the shell becomes smooth after processing, which changes the phenomenon of residual powder caused by the former rough inner surface of the machine. So that the production of drugs, food, chemical products more in line with National Standards and GMP requirements.
(2) the grinding screen is made of high quality stainless steel. When another particle size of powder is needed, the screen mesh can be easily replaced.

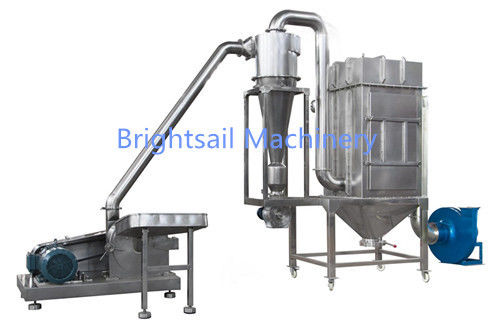

(3) excellent cyclone powder discharge system, through the powder discharge motor automatically rotating powder discharge device, hoping that powder discharge uniform, so that powder discharge smooth, not fly powder.
(4) all stainless steel structure, in line with GMP standards, in line with food grade, chemical grade, pharmaceutical grade standards.
Technical data Of Sugar Powder Grinding Machine:
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
Packaging and Transportation:
1. We provide delivery methods: Express delivery, Air Freight, sea freight.
Can Accept Order: Full case packing, less case packing.
Delivery: EXW , FOB, CIF, CNF, etc. .
We always choose the most economical and reliable shipping company to ensure that you receive the goods in time. The bill of lading and express delivery number will be provided to you after shipment.
