제품 상세 정보:
|
| 상품 이름: | 자동인 차 패키징 머신 | 압인식: | 안쪽이고 겉봉지 |
|---|---|---|---|
| 채우는 범위: | 3일부터 10일까지 Ｇ (1.6 ~ 26 밀리람베르트) | 내부 백의 사이즈: | (L) 다음50 - 70 밀리미터 ( W ) :45 - 80 밀리미터 |
| 전반적인 차원: | 1750*740*1950 밀리미터 | 총 힘: | AC220V/ 50Hz /3.7kw |
| 이명: | 차봉지 기계 패키지 | 장점: | 긴 직장 생활과의 상등품 |
| 강조하다: | 7g Tea Bag Filling Packing Machine,PID Temperature Controller Filling Packing Machine,Multifunctional Pouch Filling Machine |
||

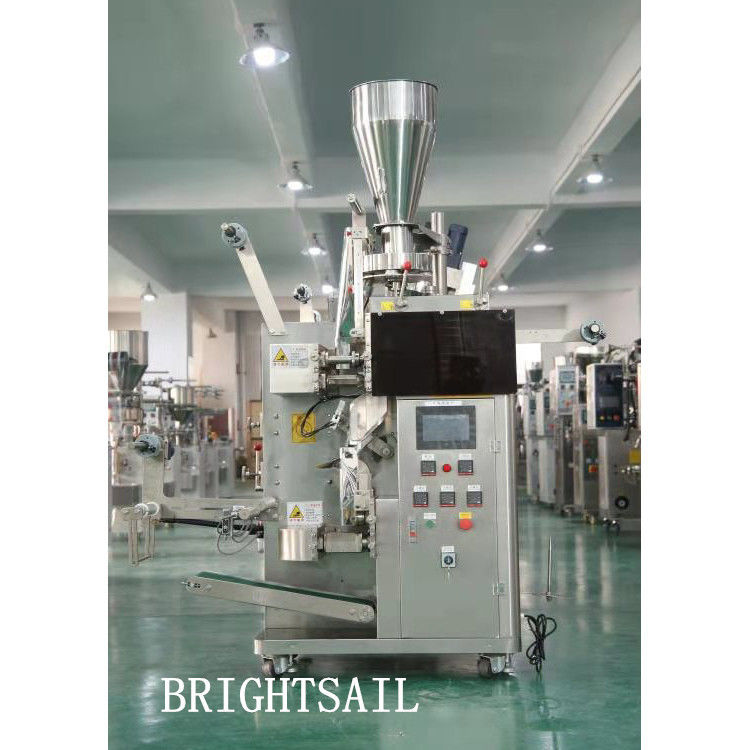

Packing 30 To 40 Bags Per Minute 3 To 10g Filling Range Tea Bag Machine Packaging

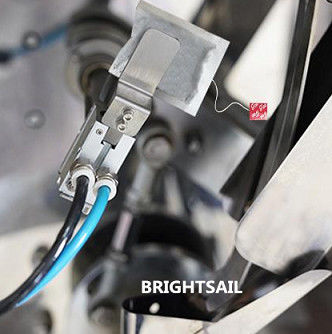

This machine is a new type of heat-sealing automatic multifunctional tea bag packaging equipment. The inner and outer bags are formed at the same time to avoid direct contact with the packaging materials and improve work efficiency. The inner bag is made of filter paper with thread and label, and the outer bag is made of composite paper. The biggest advantage is that the label and the outer bag can be positioned by photoelectric. Packaging capacity, inner bag, outer bag size can be adjusted according to different requirements to achieve the best packaging effect.
Technical Data Of Tea Bag Machine Packaging:
| Model | BS - NW160 all-in-one |
| Sealing type | The trilateral sealing |
| Filling range | 3 - 10 g( 1.6 ~ 26 ml ) |
| Size of Inner Bag | (L) :50 - 70 mm ( W ) :45 - 80 mm |
| Size of Outer Bag | (L) :80 - 120 mm ( W ) :75 - 95 mm |
| Packaging speed | 30 - 40 bags / min |
| Overall dimension | 1750*740*1950 mm |
| Total weight | 500 kg |
| Total Power | AC220V/ 50Hz /3.7kw |
| Gas source | ≥0.4m /min |
Features Of Tea Bag Machine Packaging:
1. The outer sealing paper is controlled by stepper motor, with stable bag length and accurate positioning;
2. PID temperature controller is adopted to control the temperature more accurately;

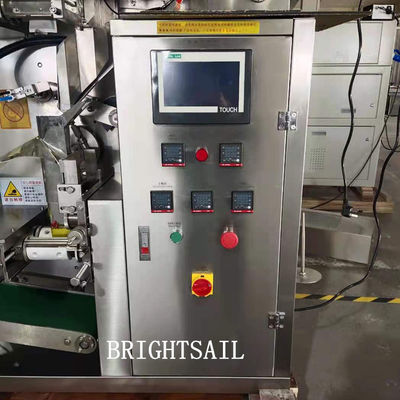

3. PLC is adopted to control the whole machine's movement, human-machine interface display, easy operation;
4. All the contactable materials are made of stainless steel to ensure the hygiene and reliability of the products;
5. Part of the working cylinder adopts original imported parts to ensure its working accuracy and stability.
6. The additional device of this machine can complete the functions of flat cutting, date printing, easy tearing and so on.
