제품 상세 정보:
|
| 상품 이름: | 차봉지를 위한 패키징 머신 | 압인식: | 안쪽이고 겉봉지 |
|---|---|---|---|
| 채우는 범위: | 3일부터 10일까지 Ｇ (1.6 ~ 26 밀리람베르트) | 내부 백의 사이즈: | (L) 다음50 - 70 밀리미터 ( W ) :45 - 80 밀리미터 |
| 가스 근원: | ≥0.4m /min | 총 힘: | AC220V/ 50Hz /3.7kw |
| 이명: | 자동 차 패키징 머신 | 장점: | 오래 견딘 |
| 하이 라이트: | Trilateral Sealing Bags Filling Packing Machine,30 Teabags Per Minute Packing Machine,PLC control Filling Packing Machine |
||

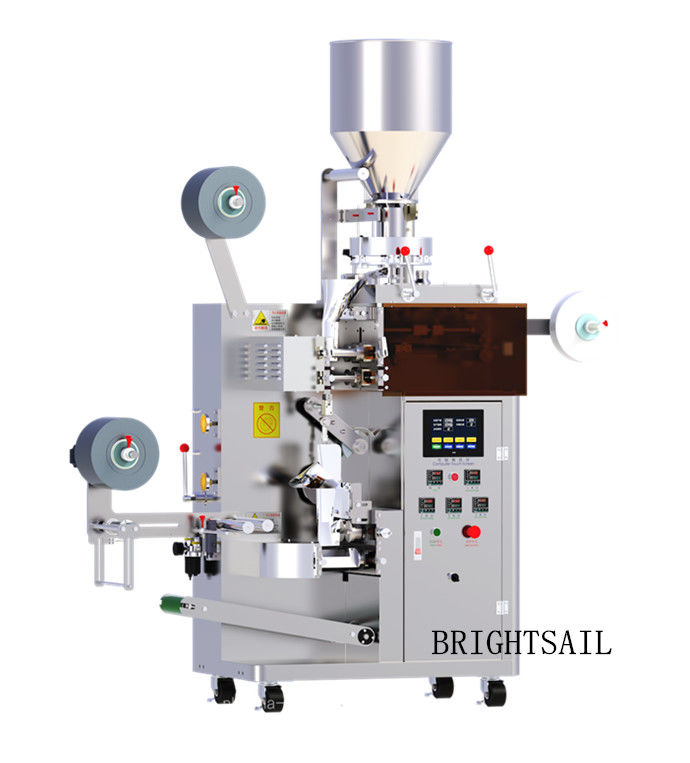

Packing 30 To 40 Bags Per Minute High-Efficient Packaging Machine For Tea Bags
This machine is a new type of automatic multi-function tea bag packaging equipment. The inner and outer bags are formed at the same time to avoid direct contact with packaging materials and improve work efficiency. The inner bag is filter paper with thread and label, and the outer bag is composite paper. The biggest advantage is that the label and bag can be photoelectric positioning. Packaging capacity, inner and outer bag size can be adjusted according to different requirements to achieve the best packaging effect.
Technical Data Of Packaging Machine For Tea Bags:
| Model | BS - NW160 all-in-one |
| Sealing type | The trilateral sealing |
| Filling range | 3 - 10 g( 1.6 ~ 26 ml ) |
| Size of Inner Bag | (L) :50 - 70 mm ( W ) :45 - 80 mm |
| Size of Outer Bag | (L) :80 - 120 mm ( W ) :75 - 95 mm |
| Packaging speed | 30 - 40 bags / min |
| Overall dimension | 1750*740*1950 mm |
| Total weight | 500 kg |
| Total Power | AC220V/ 50Hz /3.7kw |
| Gas source | ≥0.4m /min |
Features Of Packaging Machine For Tea Bags:
1. Stepper motor control, bag length stability, accurate positioning;
2. Adopt PID temperature controller, the temperature control is more accurate;
3. PLC control the whole machine movement, man-machine interface display, easy to operate;
4. All contact materials are made of stainless steel to ensure product hygiene and reliability.
5. Part of the working cylinder adopts original imported parts to ensure the working accuracy and stability.
6. The additional device of this machine can finish the functions of trimming, Date Printing, easy tearing and so on.
Suitable Products Of Packaging Machine For Tea Bags:
